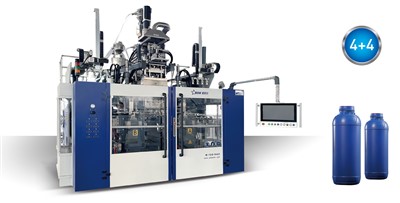

The most advanced 6 layers machine in China with barrier layer.Equipped with max 500 points Rexroth wall-thickness controller. Uniform wall-thickness of barrier layer can be 0.03~0.08mm to save your material cost.Bestar provides customers with 5 liters agrochemical jerry can blow molding machine with view stripe and in-mold labeling.
2 cavities,double stations. cycle time 36seconds. output 400 pcs/hour, Bottle net weight 280g
Application
|
Article |
5L pesticide bottle |
|
Cavities Per Mould |
2 cavities |
|
layers |
6layer |
|
Double/Single Stations |
Double Stations |
|
Net Weight |
380g 280g |
|
Cycle Time |
50 seconds 36 seconds |
|
Article Output |
288 pcs/hour 400 pcs/hour |
|
Machine Type |
B25D-750 |
Control System
Austria B&R newest control system with an Intel Atom 1.46G
low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown
Data reading and writing are made easier with an external USB .
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters
Adaptable upgrade choices
Die head
6-cavities ReCo 3-layer Extrusion Head
Precise ,accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control
Multi-layer co-extrusion head with sprial mandrel or heart curve
Die head single layer with offset spider
View stripes based on your request.
