Bestar 750ml shampoo bottle blow molding machine . Bestar Machinery offers clients high-efficiency, creative, and energy-efficient shampoo bottle blow molding machinery solutions by utilizing the spirit of European blow molding technology.
6 cavities, cycle time 16 seconds.output is 2700 pcs/hour. Bottle net weight 43±1g.
Application
Technical specifications
|
Article |
750ml HDPE 3layers shampoo bottle |
|
Cavities Per Mould |
6 cavities |
|
Layers |
Reco 3layers |
|
Double/Single Stations |
Double Stations |
|
Net Weight |
43±1g |
|
Cycle Time |
16 seconds |
|
Article Output |
2700 pcs/hour |
|
Machine Type |
B15D-560 |
Control System
Austria B&R newest control system with an Intel Atom 1.46G
low-power 64-bit processor, integrated control, a direct display of the machine's operating characteristics, and an adjustable panel. Direct displays of the operating screen, automatic alert, and automatic problem diagnostics
18.5-inch touchscreen display featuring an interface that is easier to use. Integrated 100-point(max 500points) axial wall thickness control to precisely regulate the product's wall thickness and reduce the cost for raw materials
A programmable timer to regulate the heating and lower the temperature for an overnight shutdown
Data reading and writing are made easier with an external USB .
Ethernet connection Remote diagnostics, remote service access, and accurate error parameters
Adaptable upgrade choices

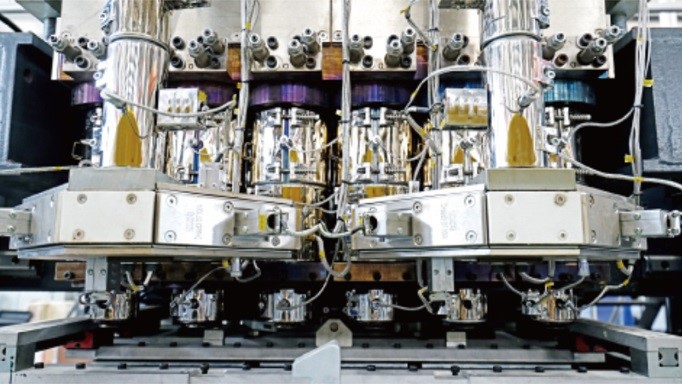

Die head
6-cavities ReCo 3-layer Extrusion Head
Precise ,accurate and streamlined die head design.Without blind angles and with faster color change.
Lower back pressure .Longer service life of extruder unit and gear box.
Multi-cavity flow channel with simple flow control
Multi-layer co-extrusion head with sprial mandrel or heart curve
Die head single layer with offset spider
View stripes based on your request.
